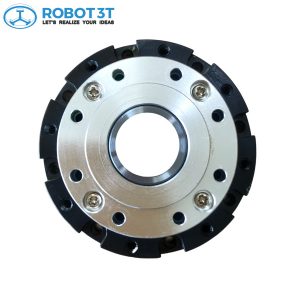

G3T-11 Ultra-compact harmonic gear is suitable for designs that require compact space, easy to integrate and suitable for many different applications.

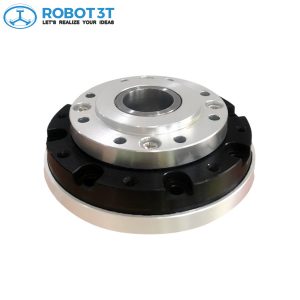

GET A QUOTE![](https://robot3t.com/wp-content/uploads/2022/06/z3586471538250_81074f5e105a67865110b83601d36cf8-800x800.jpg)
![](https://robot3t.com/wp-content/uploads/2022/06/thin.png)
Super thin & Compact
![](https://robot3t.com/wp-content/uploads/2022/06/Red-Circle-PNG-Image-HD.png)
Hollow structure
![](https://robot3t.com/wp-content/uploads/2022/06/payload.jpg)
High load capacity
![](https://robot3t.com/wp-content/uploads/2022/06/repeat.jpg)
High position accuracies
Specifications
Model |
VC-01 | |
Ratio |
50, 80, 100 | |
Output Torque ( Nm ) | 4.2 (Ratio 50)
5 ( Ratio 80 ) 6 ( Ratio 100) |
|
Largest Allowed Torque ( Nm) | 10 (Ratio 50)
10.5 ( Ratio 80 ) 13.2 ( Ratio 100)
|
|
Average Allowed Torque ( Nm ) | 6.6 (Ratio 50)
8.6 ( Ratio 80 ) 10.5 ( Ratio 100)
|
|
Backlash ( Arc sec) |
max 20 | |
Design life ( Hour) |
10000 | |
Maximum Revolution ( r/min) | 8500 | |
Average Revolution( r/ min) |
3500 |
G3T-11 Drawing
![](https://robot3t.com/wp-content/uploads/2022/06/G3T-drawing.png)
