CTH3T-03: 30 to 36mm Diameter Anti-collision Torch Holder
$130.00
Anti-collision torch holder for CNC plasma cutting, improved version for Ø30–36 mm torches: passive spring breakaway protects the torch instantly in a crash, with 2 collision sensor ports and 1 surface-detection port. Adjustable torch tilt and stiffness, compact design that mounts easily on the Z axis. Made in Vietnam by Robot3T.
CTH3T-03 is the improved version for plasma torches with a 30–36 mm body. It protects the torch when the cutting head hits a tipped-up part, a fixture or the table at high speed. Its passive spring mechanism reacts instantly – no power or software needed – letting the torch break away instead of bending or breaking, while two collision sensors tell the CNC controller to stop the machine. A third sensor port is provided for surface detection. The holder is compact, lets you adjust torch tilt and breakaway stiffness, and mounts easily on the Z axis of any CNC plasma cutting machine. Designed and built by Robot3T in Vietnam.
Request a quote WhatsApp +84 974 908 615Typical applications
- CNC plasma cutting tables: protect the torch on gantry and portable cutting machines.
- Thick and warped sheet: where cut parts often tip up into the torch path.
- Machine builders and retrofits: add crash protection to new machines or upgrade existing ones.
- Robotic plasma cutting: breakaway protection for torches mounted on robot arms.
Why CTH3T-03
- Instant protection – the passive spring reacts mechanically, faster than any software.
- Stops the machine – two collision sensor ports send a signal to the controller on impact.
- Surface detection ready – a third sensor port for initial height sensing.
- Tunable – adjust torch tilt and breakaway stiffness to match your torch and process.
- Compact and easy to fit – highly integrated design that mounts directly on the Z axis.
- Lower running cost – fewer broken torches, consumables and hours of downtime.
Specifications
| Model | CTH3T-03 |
| Torch type | Plasma cutting torch, Ø30–36 mm |
| Protection mechanism | Passive spring breakaway |
| Collision detection | 2 sensor thread holes |
| Surface detection | 1 sensor thread hole |
| Adjustments | Torch tilt, breakaway stiffness |
| Mounting | CNC Z axis |
| Origin | Robot3T, Vietnam |

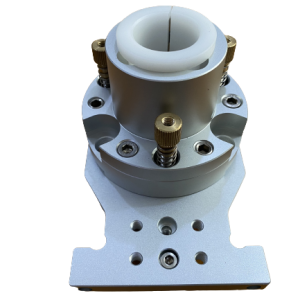

Product images
Documentation
Download user manual (PDF)Frequently asked questions
Which plasma torches does it fit?
Torches with a 30–36 mm body. For Ø45–55 mm torches use CTH3T-02; for other sizes, send us your torch model and we will recommend the right holder.
What sensors do I need?

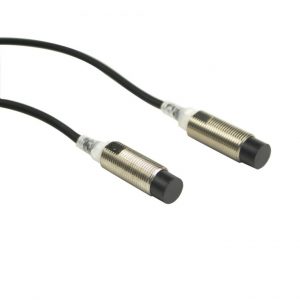

Standard threaded proximity sensors are used for collision and surface detection. We can supply the sensors and help wire them to your CNC controller.
Does it work with Robot3T CNC controllers?
Yes. It pairs with our CNC cutting control products, and can also be connected to most third-party controllers through their input signals.
Do you ship outside Vietnam?
Yes. Contact sales@robot3t.com for a quote including shipping to your country.
Tired of broken torches and downtime?
Tell us your machine and torch model. Our engineers will recommend the right holder and sensors, and quote at no cost.
