R3T-02: 3kg Payload Industrial Robot
Compact 4-axis industrial robot for welding cells, pick-and-place, assembly and G-code path processes. 3 kg payload, 650 mm reach, 180°/s joints, 1,100 mm/s tool speed, ±0.05 mm repeatability. Complete with control box (4 AC servo drivers, 24 DI/DO + 8 AI/AO), 11.6″ touch teach pendant and Modbus TCP/IP. Made in Vietnam by Robot3T.
R3T-02 is a compact 4-axis industrial robot that carries 3 kg within a 650 mm reach – a good balance of strength and footprint for small cells. It moves the tool at up to 1,100 mm/s and repeats positions within ±0.05 mm. The complete system includes the robot arm, a control box with four AC servo drivers and 32 I/O channels, and an 11.6-inch touch-screen teach pendant. Programs are created by point-to-point teaching on a graphical interface or by importing G-code, and Modbus TCP/IP makes it easy to connect to PLCs and machines. Robot3T also supplies R3T-02 as part of robotic welding systems. Designed and built in Vietnam.
Request a quote WhatsApp +84 974 908 615Typical applications
- Robotic welding cells: compact welding systems for small parts.
- Pick-and-place and assembly: parts up to 3 kg in tight workspaces.
- Path processes from G-code: dispensing, marking, engraving and light cutting.
- Machine tending: loading small CNC machines and test stations.
- Labs and pilot lines: proving automation concepts before scaling up.
Why R3T-02
- Compact and capable – 3 kg payload with a 650 mm reach for small cells and workbenches.
- Fast and precise – 180°/s on every joint, 1,100 mm/s at the tool, ±0.05 mm repeatability.
- Complete industrial system – arm, control box, servo drivers, I/O and teach pendant delivered ready to run.
- Flexible programming – teach points on the 11.6″ touch pendant or import G-code from CAD/CAM.
- Easy to connect – Modbus TCP/IP plus 24 digital and 8 analog I/O.
Robot specifications
| Model | R3T-02 |
| Degrees of freedom | 4 |
| Payload | 3 kg |
| Reach | 650 mm |
| Repeatability | ±0.05 mm |
| Joint speed | 180°/s (all joints) |
| Tool speed | 1,100 mm/s |
| Programming | Graphical UI, 11.6″ teach pendant |
| Teaching | Point-to-point; G-code import |
| Communication | Modbus TCP/IP |
| Power supply | 200–240 VAC, 50/60 Hz |
| Robot weight | 25 kg |
| Material | Aluminium AL6061, anodized |
| Operating temperature | 0–50 °C |

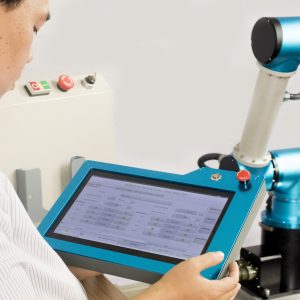

Teach pendant and control box
| Pendant display | 11.6″ capacitive touch LCD |
| Pendant size | 350 × 210 × 40 mm |
| Pendant weight | 1.6 kg |
| Pendant cable | 3.5 m |
| Pendant protection | IP54 |
| Control box size | 500 × 500 × 500 mm |
| Control box weight | 30 kg |
| Servo drivers | 4 × AC servo |
| I/O | 24 digital + 8 analog |
| Robot–controller cable | 6 m |
Working range and welding system
Control cabinet and interface board
Programming interface
See it in action
R3T-02 in action
- Compact 4-axis cell, fast cycles.
- Point-to-point teaching or G-code paths.
- Complete system, ready to run.
Frequently asked questions
R3T-01, R3T-02 or R3T-05?
All three are 4-axis robots with the same controller and pendant. R3T-01 carries 1 kg (850 mm reach), R3T-02 carries 3 kg (650 mm reach) and R3T-05 carries 10 kg (950 mm reach). We can help you choose.
Can it connect to my PLC and machines?
Yes. Use Modbus TCP/IP or the 24 digital and 8 analog I/O channels to exchange signals with PLCs, sensors, grippers and machines.
Do you build complete cells?
Yes. Robot3T designs grippers, fixtures, conveyors and safety guarding, and delivers turnkey automation cells with commissioning and training.
Do you ship outside Vietnam?
Yes. Contact sales@robot3t.com for a quote including shipping to your country.
Have a small part to weld or handle?
Send us a short video or description of the job. Our engineers will check feasibility, cycle time and layout, and quote at no cost.
