R3T-06: 5-Axis Industrial Robot, 10 kg Payload, 1500 mm Reach

10 kgPayload

1500 mmReach

1100 mm/sTool speed

±0.05 mmRepeatability

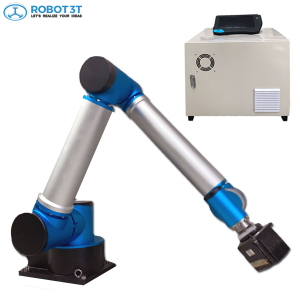

R3T-06 is a 5-axis industrial robot with a long 1,500 mm reach, built to automate core production tasks at a very competitive cost. It carries 10 kg, moves the tool at up to 1,100 mm/s and repeats positions within ±0.05 mm, while the fifth axis lets the tool tilt to reach angled surfaces and the inside of machines. The complete system includes the robot arm, a control box with five AC servo drivers and 32 I/O channels, and an 11.6-inch touch-screen teach pendant. Programs are created by point-to-point teaching on a graphical interface or by importing G-code, and Modbus TCP/IP makes it easy to connect to PLCs and machines. Designed and built by Robot3T in Vietnam.

Request a quote WhatsApp +84 974 908 615

Typical applications

Machine tending: loading and unloading large CNC machines, presses and injection molding machines.
Palletizing and depalletizing: the long reach covers full pallets and several conveyors.
Demolding: removing parts from large molds with a tilted approach.
Path processes from G-code: dispensing, spraying, cutting or engraving on angled surfaces.
Handling between stations: one robot serving several machines in a cell.

Why R3T-06

Long reach – 1,500 mm working radius covers large parts, pallets and multiple machines.
5-axis flexibility – tilt the tool to reach angled surfaces and work inside machines.
Complete industrial system – arm, control box, five servo drivers, I/O and teach pendant delivered ready to run.
Flexible programming – teach points on the 11.6″ touch pendant or import G-code from CAD/CAM.
Easy to connect – Modbus TCP/IP plus 24 digital and 8 analog I/O for sensors, grippers and machines.

Robot specifications

Model	R3T-06
Degrees of freedom	5
Payload	10 kg
Reach	1,500 mm
Repeatability	±0.05 mm
Joint speed	180°/s (all joints)
Tool speed	1,100 mm/s

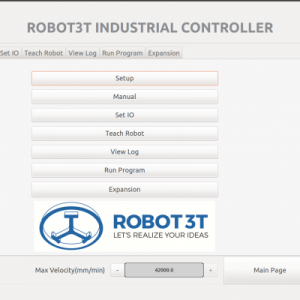

Programming	Graphical UI, 11.6″ teach pendant
Teaching	Point-to-point; G-code import
Communication	Modbus TCP/IP
Power supply	200–240 VAC, 50/60 Hz
Robot weight	150 kg
Material	Aluminium AL6061, anodized
Operating temperature	0–50 °C

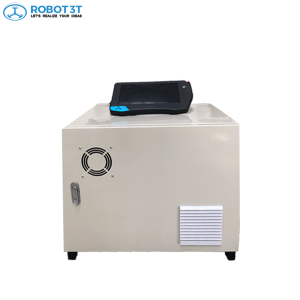

Teach pendant and control box

Pendant display	11.6″ capacitive touch LCD
Pendant size	350 × 210 × 40 mm
Pendant weight	1.6 kg
Pendant cable	3.5 m
Pendant protection	IP54

Control box size	650 × 550 × 550 mm
Control box weight	60 kg
Servo drivers	5 × AC servo
I/O	24 digital + 8 analog
Robot–controller cable	6 m

Product images

Frequently asked questions

R3T-06 or R3T-05?
R3T-05 is a 4-axis robot with 950 mm reach for compact cells. Choose R3T-06 when you need a longer 1,500 mm reach or a tilted tool approach. For work right next to people without fencing, choose a VietCobot. We can help you decide.

Can it connect to my PLC and machines?
Yes. Use Modbus TCP/IP or the 24 digital and 8 analog I/O channels to exchange signals with PLCs, sensors, grippers and machines.

Do you build complete cells?
Yes. Robot3T designs grippers, fixtures, conveyors and safety guarding, and delivers turnkey automation cells with commissioning and training.

Do you ship outside Vietnam?
Yes. Contact sales@robot3t.com for a quote including shipping to your country.
