R3T-01-E: Industrial Robot For Education
Education version of the R3T-01 4-axis industrial robot: AC servo motors, open and visible control cabinet, 11.6″ touch teach pendant, point-to-point teaching and G-code import, 48 digital I/O. 1 kg payload, 850 mm reach, ±0.05 mm repeatability. Ideal for universities and vocational training. Made in Vietnam by Robot3T.
R3T-01-E is the education version of our R3T-01 industrial robot. It is a real 4-axis industrial robot – AC servo motors, servo drivers, industrial control cabinet and an 11.6-inch touch teach pendant – with the cabinet and components laid out openly so students can see, trace and understand every part of the system. Trajectories and work tasks are easy to adjust on the graphical interface, programs can be taught point by point or imported as G-code, and 48 digital I/O give plenty of room for lab exercises with sensors, grippers and conveyors. With 1 kg payload, 850 mm reach and ±0.05 mm repeatability, it is ideal for universities, vocational schools and training centres. Designed and built by Robot3T in Vietnam.
Request a quote WhatsApp +84 974 908 615Typical applications
- Robotics and mechatronics courses: kinematics, programming and servo control on real industrial hardware.
- Vocational training: teaching robot operation, maintenance and wiring of control cabinets.
- Automation labs: exercises with PLC, sensors, grippers and conveyors through 48 I/O.
- CAD/CAM and G-code projects: drawing, engraving and path-following exercises.
- Student projects and research: a reliable platform for theses and competitions.
Why R3T-01-E
- Real industrial robot – AC servo motors and industrial controller, not a toy; skills transfer directly to the factory.
- Open, visible design – control cabinet and components arranged so students can learn how everything connects.
- Easy to learn – adjust trajectories and tasks on an intuitive 11.6″ touch pendant.
- Flexible programming – point-to-point teaching or G-code import from CAD/CAM.
- Plenty of I/O – 48 digital inputs and outputs for lab exercises and projects.
Robot specifications
| Model | R3T-01-E |
| Degrees of freedom | 4 |
| Payload | 1 kg |
| Reach | 850 mm |
| Repeatability | ±0.05 mm |
| Joint speed | 180°/s (all joints) |
| Tool speed | 1,100 mm/s |
| Programming | Graphical UI, 11.6″ teach pendant |
| Teaching | Point-to-point; G-code import |
| Motors | AC servo |
| Power supply | 200–240 VAC, 50/60 Hz |
| Robot weight | 25 kg |
| Material | Aluminium AL6061, anodized |
Teach pendant and control box
| Pendant display | 11.6″ capacitive touch LCD |
| Pendant size | 350 × 210 × 40 mm |
| Pendant weight | 1.6 kg |
| Pendant cable | 3.5 m |
| Pendant protection | IP54 |
| Control box size | 500 × 500 × 500 mm |
| Control box weight | 30 kg |
| Servo drivers | 4 × AC servo |
| I/O | 48 digital |
| Robot–controller cable | 3 m |
Product images
See it in action
R3T-01-E in the classroom
- Real industrial servo robot for hands-on learning.

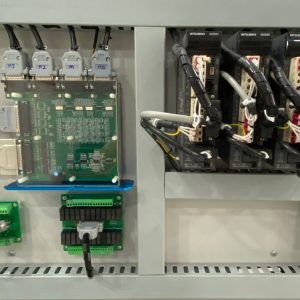

- Open control cabinet students can study.
- Easy teaching on the touch pendant.
Frequently asked questions
Do you provide training and lesson materials?
Yes. Robot3T trains teachers, provides sample programs and supports labs during setup. We also run an internship program for students.
Can it be used for production?
R3T-01-E is designed for education. For production, choose R3T-05 (10 kg) or R3T-06 (1,500 mm reach), or a VietCobot for work next to people.
Do you ship outside Vietnam?
Yes. Contact sales@robot3t.com for a quote including shipping to your country.
Setting up a robotics lab?
Tell us about your students, curriculum and budget. We will propose a complete lab package with robots, accessories and training, at no cost.
