SF3T-06 Automatic Servo Coil Feeding System

≤ 400 mmCoil width

0.1–3 mmThickness

9-rollBuilt-in straightener

6,000 mmMax. feed length

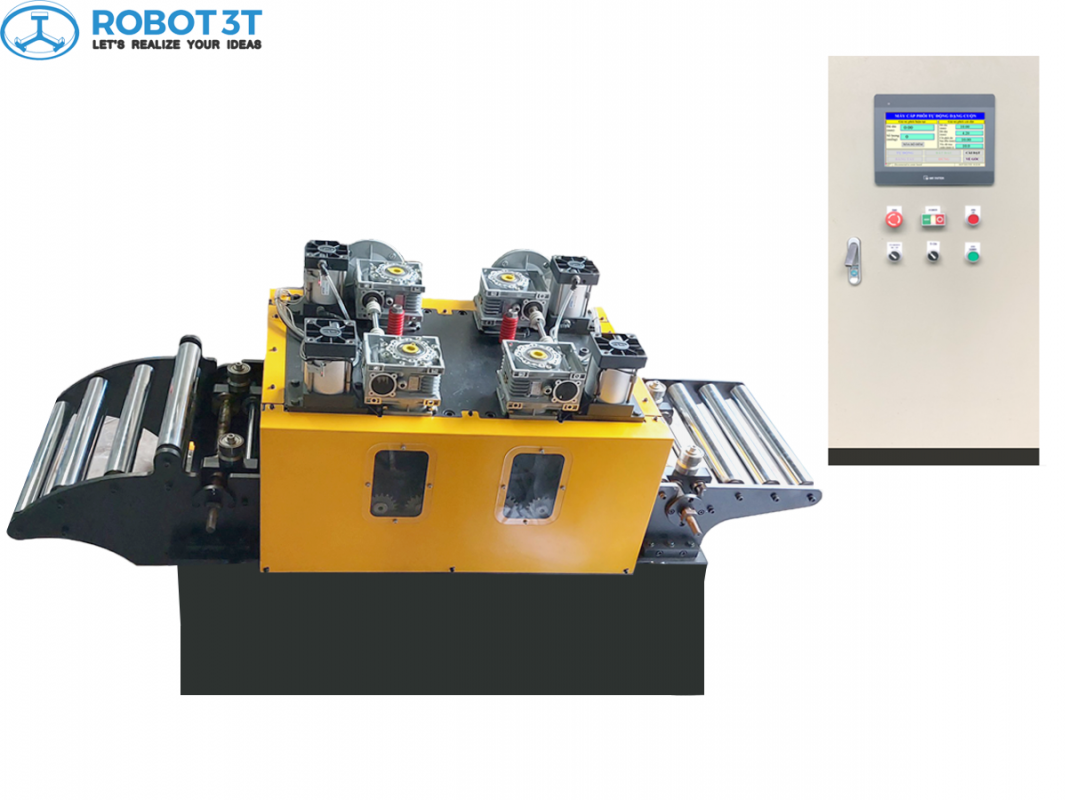

SF3T-06 is a servo roll feeder with an integrated straightener for wider coil. A 2 kW AC servo motor drives two pairs of feed rolls simultaneously for strong, slip-free traction, while a 9-roll straightener built into the feed assembly flattens the strip before it enters the die. It handles material 0.1 to 3 mm thick and up to 400 mm wide, at speeds up to 25 m/min and feed lengths up to 6,000 mm. Feed length and speed are set on a 7-inch HMI, the feeder synchronizes with the stamping press, and the design makes changing between material thicknesses quick and easy. Designed and built by Robot3T in Vietnam.

Request a quote WhatsApp +84 974 908 615

Typical applications

Wide-strip stamping: panels, brackets and enclosures from coil up to 400 mm wide.
Long blanks: feed lengths up to 6 m for profiles and long parts.
Coil with set or curl: the built-in straightener removes coil memory before the die.
Press line upgrades: replacing separate straightener and feeder with one compact unit.

Why SF3T-06

Straightener built in – 9-roll straightener on the feed assembly saves floor space and setup.
Strong traction – two pairs of feed rolls driven together by a 2 kW AC servo.
Wide and long – coil up to 400 mm wide, feed lengths up to 6,000 mm.
Synchronized with the press – feeds at the right moment every stroke.
Quick changeover – easy adjustment for different material thicknesses; settings on a 7-inch HMI.
Local support – made in Vietnam with fast service and spare parts.

Specifications

Model	SF3T-06
Coil / plate width	Up to 400 mm
Coil thickness	0.1–3 mm
Max. speed	25 m/min
Max. feed length	6,000 mm

Feeding motor	AC servo, 2,000 W
Traction	2 pairs of rollers, driven simultaneously
Straightener	Integrated, 9 rolls

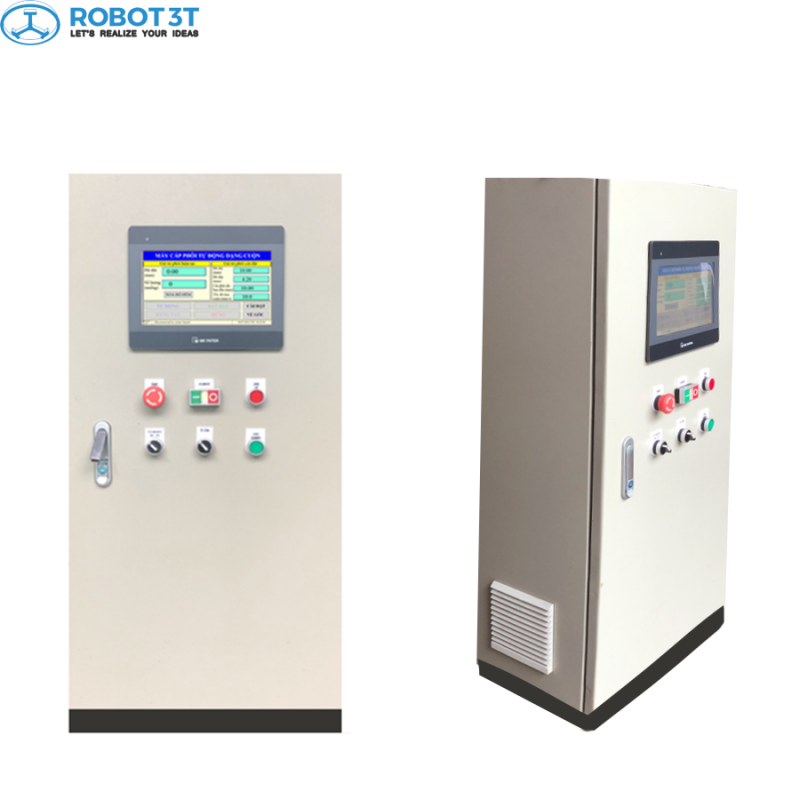

User interface	7″ HMI
Press synchronization	Yes

Product images

Frequently asked questions

Which SF3T feeder should I choose?
SF3T-03: thin strip up to 1 mm. SF3T-04: thick 1–3.2 mm strip, 4 coils. SF3T-05: high speed up to 70 m/min, up to 200 mm wide. SF3T-06: wide coil up to 400 mm with built-in straightener. Tell us your job and we will advise.

Do I still need a separate straightener?
Usually not – SF3T-06 includes a 9-roll straightener. For very thick or high-strength material, we will check your coil and advise.

Can you build a wider or heavier-duty version?
Yes. Robot3T builds servo roll feeders to order. Send us your coil width, thickness, material and feed length.
