SF3T-04 Servo Coil Feeder for Stamping Lines

≤ 200 mmCoil width

1–3.2 mmThickness

4 coilsFed at once

±0.05 mmFeed accuracy

SF3T-04 is a compact servo roll feeder built for thicker strip. A 1.5 kW AC servo motor drives permanently mounted, matte hard-chrome feed rolls in a rugged steel frame, feeding material 1 to 3.2 mm thick and up to 200 mm wide with ±0.05 mm accuracy – and it can feed four coils at the same time to multiply press output. Feed length and speed are set on a 7-inch HMI, and the air pilot release opens the rolls automatically so pilot pins can locate the strip precisely in the die. Designed and built by Robot3T in Vietnam.

Request a quote WhatsApp +84 974 908 615

Typical applications

Progressive die stamping: brackets, terminals, clips and small parts.
Thick strip: brackets and structural parts from 1–3.2 mm material.
Steel and aluminium parts: automotive, electrical and appliance components.
Press line upgrades: replacing mechanical or air feeders with accurate servo feeding.

Why SF3T-04

Made for thicker strip – 1 to 3.2 mm material, up to 200 mm wide.
Multiple coils – feeds 4 coils at once for higher output per press stroke.
Accurate – ±0.05 mm feeding accuracy for consistent parts and longer die life.
Easy to set up – enter feed length and speed on the 7-inch HMI; quick job changeover.
Built to last – rugged steel frame, permanently mounted hard-chrome feed rolls.
Local support – made in Vietnam with fast service and spare parts.

Specifications

Model	SF3T-04
Coil width	0–200 mm
Coil thickness	1–3.2 mm
Coils fed simultaneously	4
Feed speed	Up to 20 m/min

Feeding accuracy	±0.05 mm
Feeding motor	AC servo, 1,500 W
User interface	7″ HMI
Air pilot release	Yes
Feed rolls / frame	Hard-chrome rolls, rugged steel frame

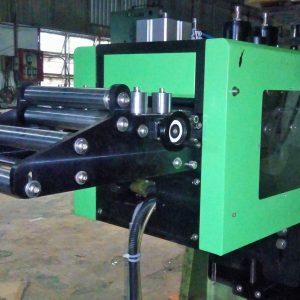

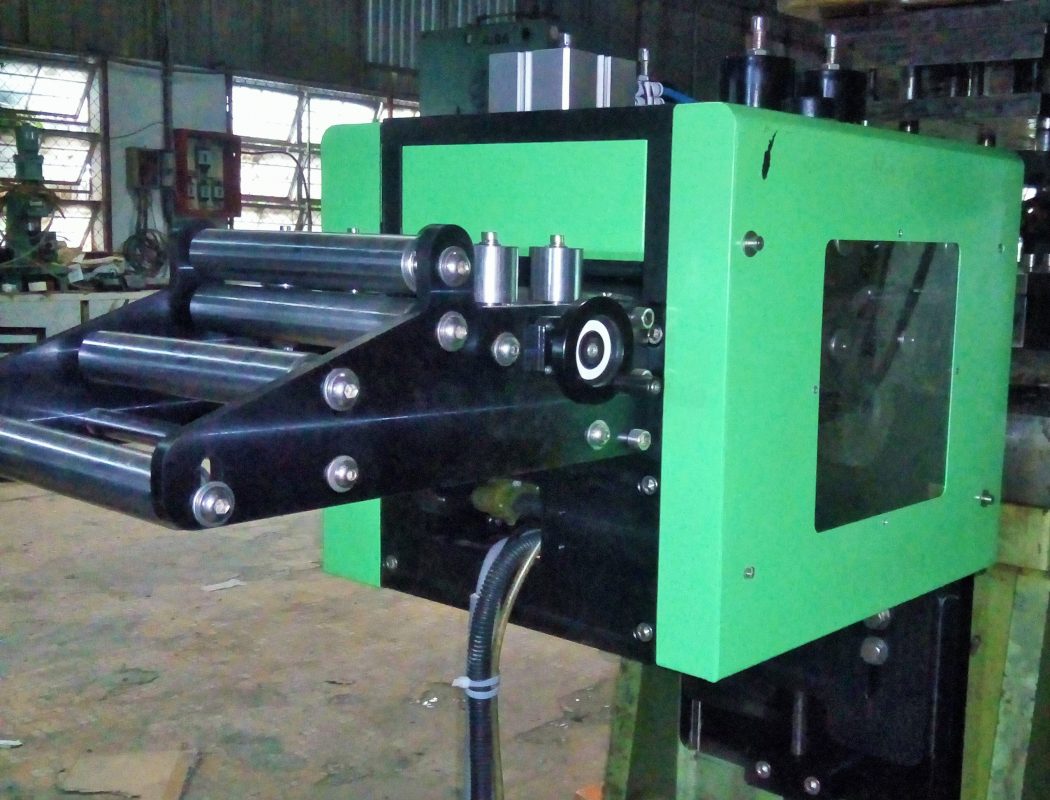

Product images

See it in action

SF3T-04 feeding a stamping press

Accurate feed length every stroke.
Thick strip up to 3.2 mm.
Simple setup on the 7″ HMI.

Book a live demo

Frequently asked questions

SF3T-04 or SF3T-05?
SF3T-04 (1.5 kW, 20 m/min) is made for thicker 1–3.2 mm strip and feeding several coils at once. SF3T-05 (2 kW, 70 m/min) suits high-speed feeding of 0.1–3 mm material. Tell us your job and we will advise.

Can you supply a decoiler and straightener too?
Yes. We can supply a complete coil line, or design one to match your material and space.

Can you build a wider or heavier-duty version?
Yes. Robot3T builds servo roll feeders to order. Send us your coil width, thickness, material and feed length.

Do you ship outside Vietnam?
Yes. Contact sales@robot3t.com for a quote including shipping to your country.
