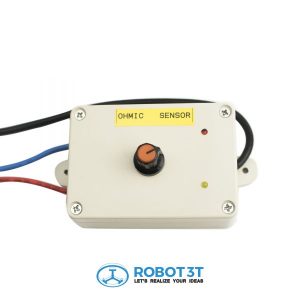

OS3T-01 Ohmic Sensor for CNC Plasma Cutting

OS3T-01 Ohmic Sensor for CNC Plasma Cutting

Uses connection between the torch shield and the work (plate/metal) to sense the touch off. Survives HF and HV sparks.

Specification

• Power: +12 to 24VDC,0.1 A, with integrated reverse voltage protection
• Sensing range : (0 – 1) MOhm.
• Output – isolated PNP.
• Life of used relay with a capacity of 24V/16mA – 10^8 operations. minimum.
• Ability to adjusting the ohmic sensor sensitivity.
• Ability to eliminate HV, the maximum the voltage arc input is 660VDC /HF ionizing voltage

Product Origin: ROBOT3T, Vietnam

Link to download the user manual: OS3T-01: Ohmic Sensor for CNC Plasma Cutting
