R3T-01-E: Industrial Robot For Education

R3T-01-E: Industrial robot for education

The R3T-01-E is a deployed version of the R3T-01 toward educational applications, with an intuitive deployment of control cabinets and components, making it easy for students to learn, access and use the industrial robot.

Specifications:

• Degree of freedom: 4 DOFs
• Use AC Servo motor
• Payload: 1 kg
• Repeatability: +/- 0.05 mm
• Reach: 850 mm
• Speed: 180 degree/s for all joints, tool: 1100 mm/s
• Easy to understand adjustment trajectory and work tasks
• Importing Gcode files.
• Programing: Graphic User Interface ( 11.6 inch Tech Pendant)
• Weight: 25 kg
• Materials: Aluminum AL6061 & Anodized
• Power: 200 to 240VAC, 50-60Hz

Parameters of the teaching appratus

• Size: 350 x 210 x 40 mm
• Weight: 1600 gram
• Display: 11.6 inch capacitive LCD
• Connecting line length: 3.5 m
• Protection Level: ỊP54

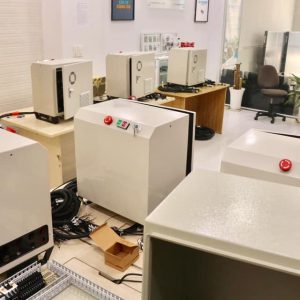

Parameters of the control box:

• Size: 500 x 500 x 500 mm
• Weight: 30 kg
• Color: White

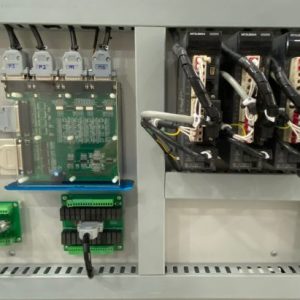

• AC Servo Driver: 4 units
• I/O Port: Digital Input and Output: 48
• Connection Robot and Connection Control Box Wire: 3m
